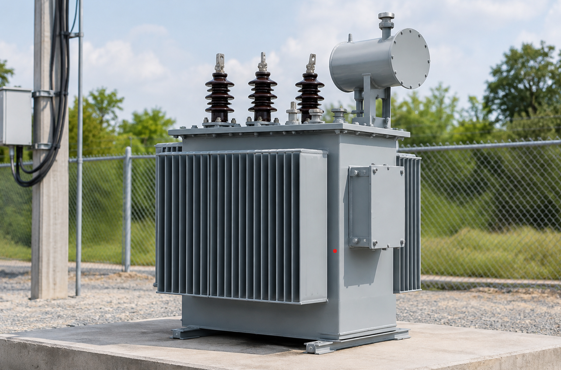

15kVA Single Phase Transformer: Specifications, Applications, and Buying Considerations

A transformer rated at 15 kilovolt-amperes (kVA) is designed to transfer electrical energy between circuits while changing voltage levels. It can supply power to residential facilities, small commercial buildings, workshops, control systems, and selected industrial equipment, provided the load requirements match its rating. Understanding its electrical specifications, installation requirements, and operating conditions helps buyers choose suitable equipment for their projects.

A 15kva single phase transformer is particularly relevant to installations that use single-phase AC power and require voltage conversion for connected equipment. However, the kVA rating alone does not determine suitability. Input voltage, output voltage, load characteristics, frequency, insulation, and operating environment must also be considered.

What Is a 15 kVA Single-Phase Transformer?

A single-phase transformer operates through electromagnetic induction. Alternating current flowing through the primary winding produces a changing magnetic field in the core, inducing voltage in the secondary winding. The output voltage depends largely on the turns ratio between the two windings.

The 15 kVA rating describes the transformer’s apparent power capacity rather than its actual power consumption. At a unity power factor, 15 kVA corresponds to 15 kW of real power. At a lower power factor, the available real power is reduced.

For example, at a power factor of 0.8, a 15 kVA transformer can supply approximately 12 kW under suitable operating conditions. Actual capacity also depends on temperature, cooling, harmonics, and the manufacturer’s specified limits.

See also: What Makes Remote Jobs Different From Office Jobs?

Common Applications and Uses

A 15 kVA transformer can serve several types of electrical installations when its voltage and load ratings are appropriate.

Small commercial facilities: Shops, offices, and service businesses may use transformers to provide the voltage required by lighting circuits, control equipment, and other electrical loads.

Workshops and light industrial equipment: Certain machines, testing equipment, and production tools require a different voltage from the available supply. A properly specified transformer can provide that conversion.

Residential and building services: Transformers may support selected building systems, auxiliary circuits, or equipment requiring a particular supply voltage.

Control panels and electrical systems: Some control circuits and specialized equipment require isolated or reduced-voltage supplies. A transformer designed for the application can provide the necessary electrical characteristics.

The connected load should be assessed before selecting equipment. Motors, compressors, and other inductive loads can draw substantial starting current, so their requirements may exceed what a simple steady-state calculation suggests.

Important Technical Specifications

Several specifications determine whether a transformer will work reliably in a particular installation.

Input and output voltage: Confirm the available supply voltage and the voltage required by the equipment. A transformer with an unsuitable voltage ratio may fail to operate the load correctly.

Rated current: Current capacity can be calculated using the relationship between apparent power and voltage. For a single-phase transformer, the approximate rated current is:

Current (A) = VA ÷ Voltage (V)

At 230 V, a 15 kVA transformer has a rated current of approximately 65.2 A on that side. At 415 V, the corresponding current is approximately 36.1 A. These figures are illustrative; the actual design and nameplate ratings should guide installation.

Frequency: The transformer’s rated frequency must match the supply frequency. Equipment designed for 60 Hz should not automatically be assumed suitable for continuous operation at 50 Hz.

Efficiency and losses: Copper losses occur in the windings, while core losses arise from the magnetic material. Both contribute to operating costs and heat generation.

Insulation and cooling: Dry-type and oil-immersed transformers have different construction, maintenance, and installation requirements. The operating environment should determine which design is appropriate.

Understanding the Cost of a Transformer

The 15 kva single phase transformer price depends on more than the nominal power rating. Buyers should compare technical specifications alongside the quoted amount to understand the actual value of each offer.

Important pricing factors include:

• Voltage configuration: Different primary and secondary voltage combinations may require different winding designs.
• Core and winding materials: Copper and aluminium windings have different electrical and cost characteristics.
• Construction type: Dry-type, oil-immersed, isolation, and autotransformer designs serve different purposes and have different manufacturing requirements.
• Efficiency requirements: Designs with lower losses may have a higher purchase price but reduce electricity costs over time.
• Protection and accessories: Temperature sensors, enclosures, terminals, tap changers, and other features can affect the final quotation.
• Testing and certification: Factory testing, applicable standards, documentation, and inspection requirements may influence the overall cost.

For an accurate comparison, request a quotation that specifies rated capacity, voltage ratio, frequency, winding material, cooling method, efficiency, warranty, delivery, and installation requirements. A low initial quote may not represent the lowest total cost of ownership.

How to Select the Right Transformer

Choosing the correct transformer begins with a load assessment. List the equipment that will operate simultaneously and identify each item’s voltage, current, power factor, and starting characteristics. Allow for reasonable future demand without selecting an unnecessarily large unit.

Next, verify the supply conditions. Confirm the incoming voltage, required output voltage, frequency, and whether electrical isolation is necessary. Some applications need an isolation transformer, while others can use a conventional two-winding or autotransformer design. These options are not interchangeable in every installation.

Environmental conditions also matter. Dust, humidity, ambient temperature, ventilation, and available floor space can affect transformer performance and service life. Outdoor installations may require suitable weather protection, while indoor installations must provide adequate clearance and ventilation.

Finally, check the manufacturer’s technical documentation. Look for rated losses, impedance, temperature rise, insulation class, permissible overload conditions, and applicable safety standards. A qualified electrical professional should verify the design before purchase and installation.

Installation, Safety, and Maintenance

A transformer should be installed according to the manufacturer’s instructions and applicable electrical regulations. Proper earthing, overcurrent protection, conductor sizing, ventilation, and accessible isolation are essential parts of a safe installation.

Protection devices must be selected to account for rated current and transformer energisation inrush. Simply matching a circuit breaker’s rating to the calculated full-load current may not provide appropriate protection under all conditions.

Routine maintenance depends on the transformer’s construction and operating environment. Inspections may include checking connections, cleaning ventilation paths, examining enclosures, monitoring temperature, and looking for unusual noise or signs of overheating. Oil-immersed units may also require oil inspections or testing according to the manufacturer’s maintenance schedule.

Any inspection involving exposed electrical parts should be carried out by qualified personnel using appropriate isolation and safety procedures.

Comparing Transformer Options Before Purchase

A 15 kva single phase transformer should be evaluated against the actual electrical requirements rather than price or capacity alone. Ask suppliers for a complete datasheet and confirm that the quoted model matches the intended application.

When comparing a 15kva transformer with other ratings, assess both present demand and likely future expansion. A smaller unit may operate beyond its intended capacity, while an unnecessarily large transformer may introduce avoidable purchase costs and additional no-load losses.

The term 15 kva transformer can also refer to equipment with different phase configurations, voltage ratios, and construction types. Confirm that the product is genuinely single-phase if that is what the installation requires.

A careful comparison of electrical ratings, losses, protection requirements, and service support will help identify equipment suited to the application.

Final Buying Considerations

Selecting a transformer requires a clear understanding of the load, supply voltage, installation environment, and expected operating conditions. The 15 kVA rating provides a useful starting point, but it should never replace a detailed technical assessment.

Buyers who verify the nameplate specifications, compare complete quotations, and follow appropriate installation and maintenance procedures are better positioned to obtain safe, dependable performance throughout the transformer’s service life.
